ISA Scale 1000A Current Sensor

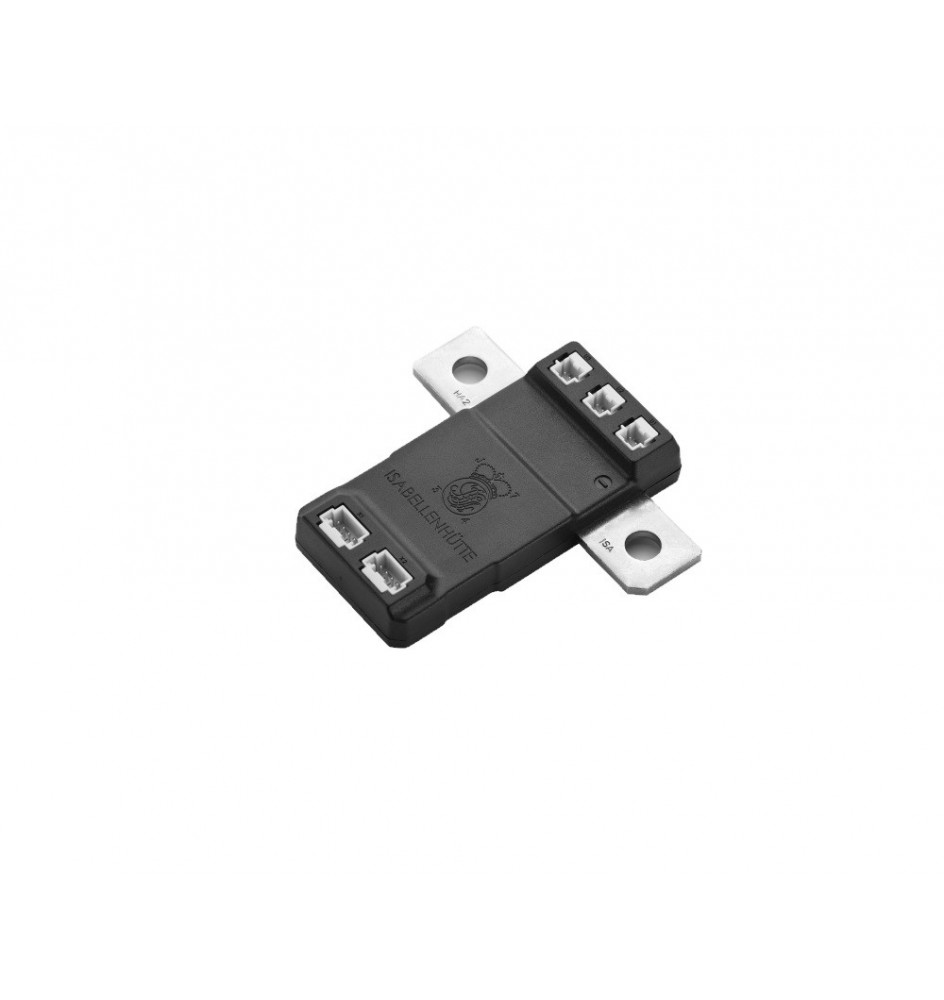

The IVT-S intelligent current and voltage measurement module is a shunt-based plug-and-play measurement system, continuously measuring current from a selection of 2 current ranges (500A and 1000A), converting the information into a digital signal and communicating the signal via the industry standard CANbus 2.0 interface.
The data is processed utilising a 16-bit AD converter at the speed of 1kHz. The modules are offered as a modular design, with the optional extras including outputs for voltage monitoring (three voltage channels are supplied, ideal for battery or relay monitoring applications) and additional CAN port to enable daisy chaining, all in a compact package of only 84x83.2x16.2mm. The IVT-S modules offer guaranteed galvanic isolation up to 1000V making it suitable for high voltage applications. The temperature sensor within the module is utilised for temperature calibration, ensuring excellent precision of ±0.5% across the whole temperature range, for greater safety, and to provide temperature reading off the shunt as requried.
Intelligent shunt-based current and voltage measurement sensor for high voltage applications
Choice of 2 different nominal current ranges: 500A and 1000A
Optional 3-channel voltage measurement ports and extra CAN port
Outputs for modules with voltage measurement include: current, 3x voltage, temperature (at shunt), power, current counter (As) and energy counter (Wh)
Outputs for modules without voltage measurement include: current, temperature (at shunt) and current counter (As)
Communicates via CANbus 2.0 interface
Operating temperature of -40° to +105°C
Accuracy of ±0.4% of reading for current measurement, ±0.5% for voltage across the complete temperature range
Dielectric strength of 1000V
The applications for the IVT-S current and voltage measurement module series include:
Hybrid and full electric drives
UPS systems
Stationary energy storage systems
Fuel cells
All battery and storage based applications
The below table gives the specifications available for the Isabellenhütte IVT-S module series:
IVT-S-1K-U0-1-CAN2-12/24
The IVT-S intelligent current and voltage measurement module is a shunt-based plug-and-play measurement system, continuously measuring current from a selection of 2 current ranges (500A and 1000A), converting the information into a digital signal and communicating the signal via the industry standard CANbus 2.0 interface.
