Resolve Marine plug-and-play solution
The ultimate plug-and-play solution designed to streamline the installation of all major Nissan Leaf® components, including the inverter, motor, charger, and battery pack. This professionally built harness eliminates the complexities of low voltage wiring, saving you days, if not weeks, of work. Together with the Resolve controller this is all you need to get the Nissan Leaf® components up and running.
Features
1.3’’ OLED display which shows state of charge, selected gear, power consumption and the water temperatures when above 80°C or 175°F.
The possibility to set the max charge to 85% to increase the longevity of the battery pack.
USB-C port to enable future software updates.

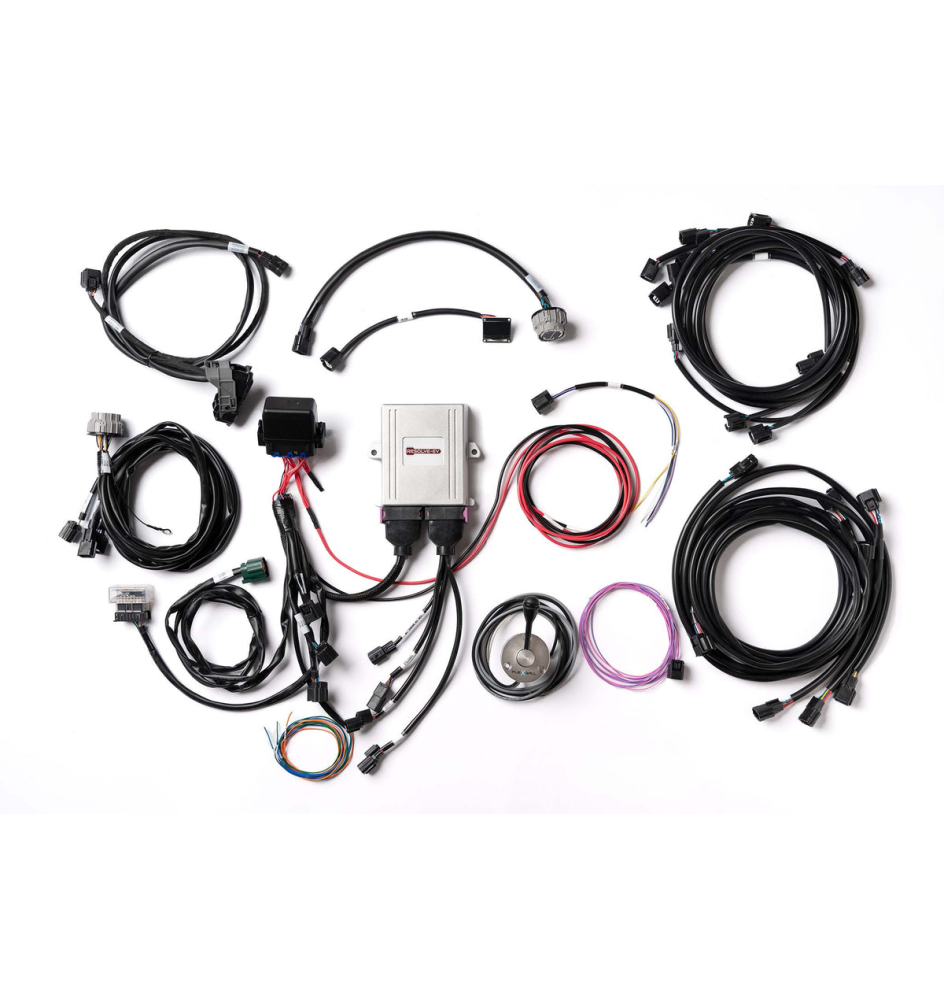

Wiring Harness
The versatile extenders included with this product, have the ability to extend the wiring for components like the inverter, charger, or battery pack. Additionally, the product comes equipped with an external relay and fuse box.
OBD2 Dongle
The included OBD2 Bluetooth dongle is compatible with the Leafspy app enables you to see error messages, individual cell voltages, error codes and much more.
Inverter Generation
To see the difference between the generation 2 and generation 3 inverters it’s easiest to look at the connector, if it’s a circular connector it’s a gen3 inverter and if it’s a rectangular connector it’s a gen2 inverter. Furthermore all Gen 2 inverters have a 80 kW power rating, whereas Gen 3 inverters are available with power ratings of 110 or 160 kW.
Marine throttle option
There are two options for throttles, top mounted or side mounted. They can be configured to only allow forward direction or allow both forward and reverse. To see more details such as size travel distance please see Marine throttle Dimensions in the Attachments tab.
Resolve-Marine
The ultimate plug-and-play solution designed to streamline the installation of all major Nissan Leaf® components, including the inverter, motor, charger, and battery pack. This professionally built harness eliminates the complexities of low voltage wiring, saving you days, if not weeks, of work. Together with the Resolve controller this is all you need to get the Nissan Leaf® components up and running.
