- -€46.00
- New

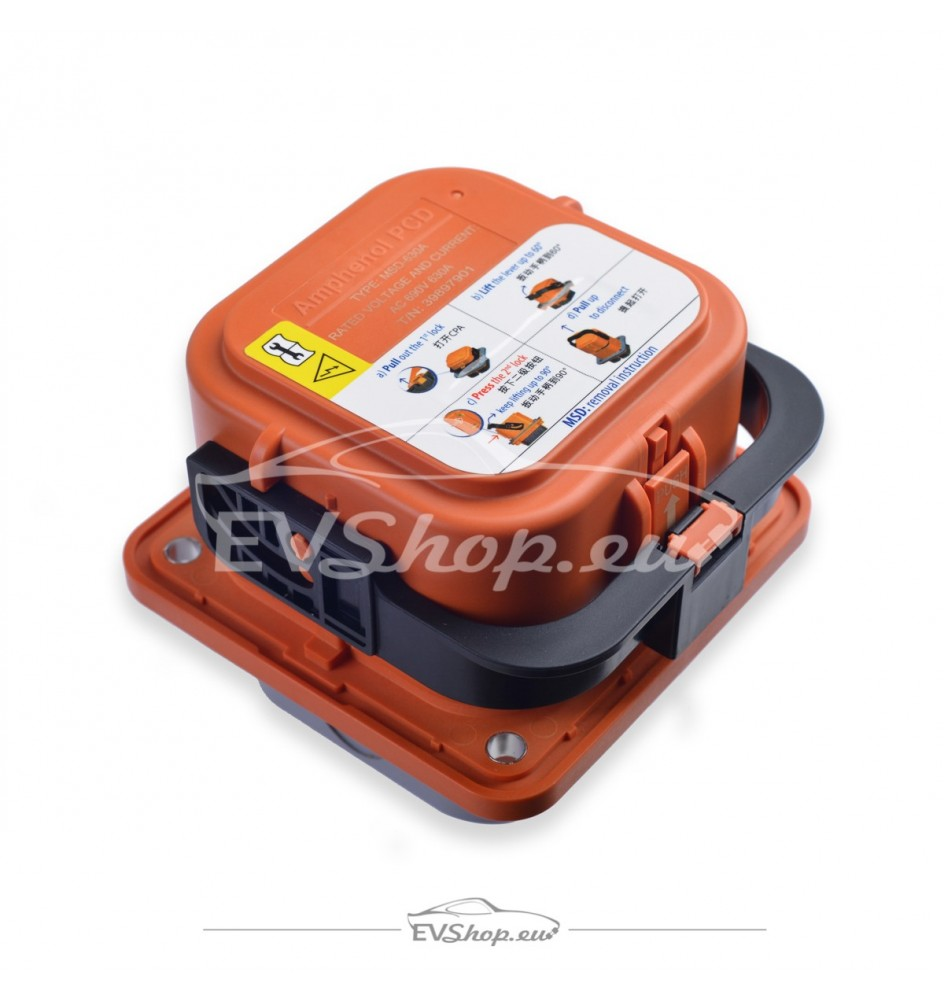

Battery disconnect with shunt
It's a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuits. This makes MSD connectors a safe solution for the maintenance of electric vehicles.
Battery disconnect with shunt
It utilizes a two-stage lever system to open the HVIL circuit prior to separation of HV contacts. All HV conducting surfaces on receptacles are touch proof.
MECHANICAL
Mating cycles ≥ 50 cycles
ELECTRICAL
Fuse specification up to 630A
With shunt:
Rated current 260A Max @ Ambient 70°C
Rated voltage 1000V DC Max
ENVIRONMENTAL
Protection degree IP67, IP6K9K (mated)
Ambient temperature -40°C to 70°C
Storage temperature -40°C to 85°C
Operating temperature -40°C to 125°C
Flammability UL94V0
STANDARDS
USCAR-2
USCAR-37
LV-215
RoHS
SETMSD-SHUNT
It's a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuits. This makes MSD connectors a safe solution for the maintenance of electric vehicles.
