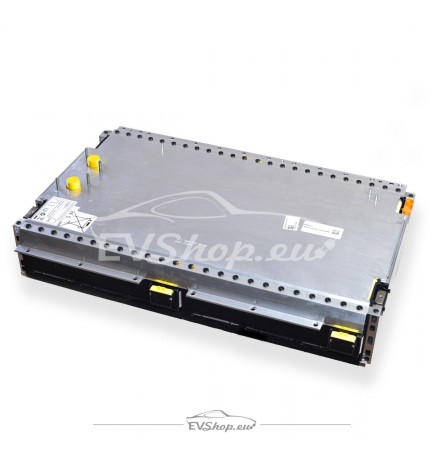

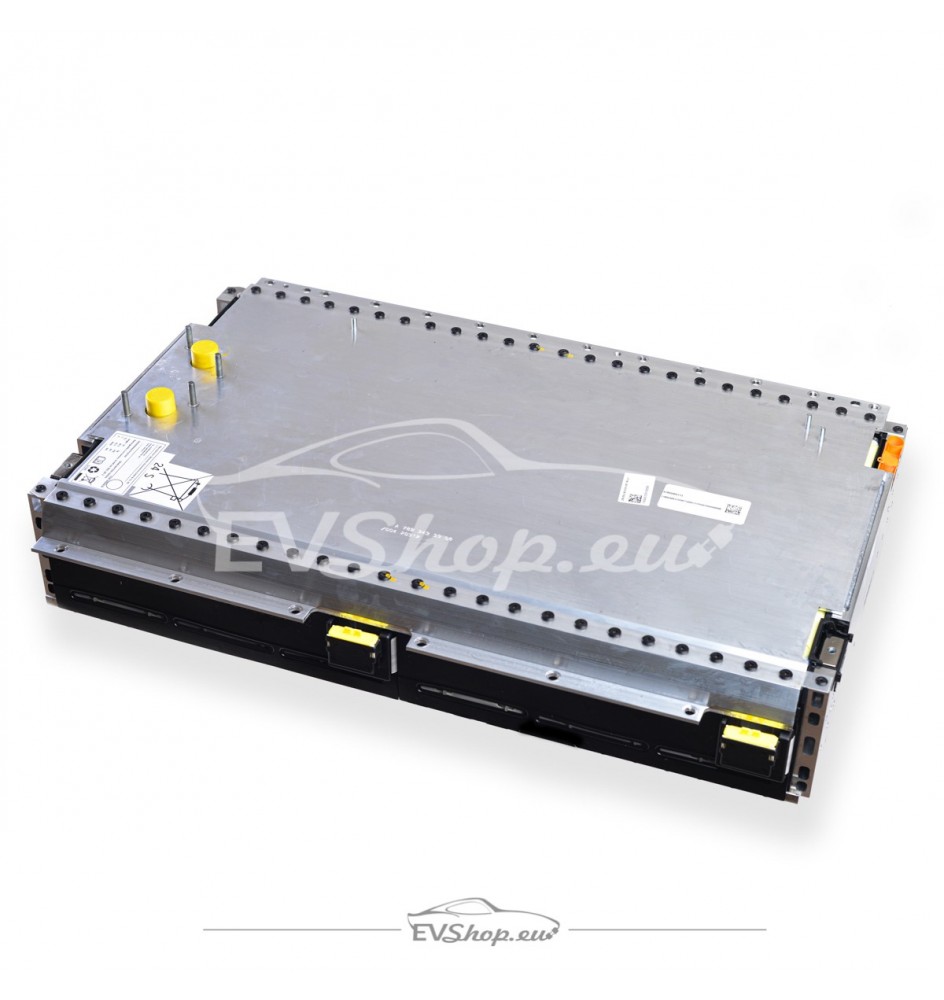

24S 10.1kWh LGChem battery module (Used)
LGChem 24S, 10,1kWh battery module 115Ah, 87,5V nominal
Sold with cells connector
24S 10.1kWh LGChem battery module
This battery module is perfect for prototypes/energy storage up to 100V with water cooling !
Capacity: 115Ah, 10,1kWh
Height: 11.2 cm
Width: 41.5 cm
Length: 64.5 cm
Weight: 53 kg
Bolt Size: M5
Voltage nominal: 3.65V/Cell, 87.5V/Module
Charge voltage cut-off: 4.2V/Cell, 100.8V/Module
Discharging cut-off: 2.8V/Cell, 67.2/Module
Maximum Discharging Current (10 sec.): 400 Amps
Warranty Period: One year
LGChem 24S
Question & Answer:
Q :
Salut aceasta baterie a fost montat in auto
A: Buna ziua, da, aceasta baterie a fost folosita intr-o masina electrica.
George @EVShop
Q :
What is the model of the cells. Do you have cell or module datasheet with more information about temperature and currents.
A: Hello, is the prismatic type of cells. I don't have datasheet, these are not public, therefore we don't have them. Thanks!
George @EVShop
Q :
Hello! I would like to request the full specifications of the 24S LGChem Battery Module as well as any other details about it, thank you
A: Hello, I have sent you email. Thanks!
George @EVShop
LGChem 24S, 10,1kWh battery module 115Ah, 87,5V nominal
Sold with cells connector
