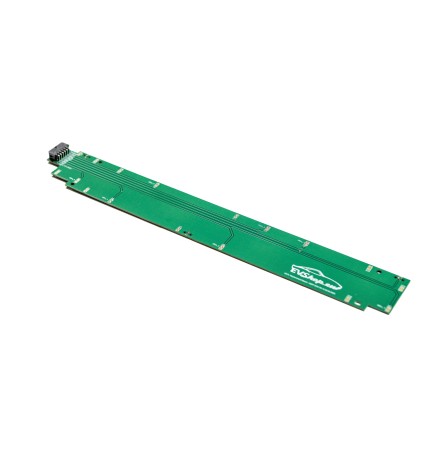

CATL Replacement board 6S2P

CATL Replacement board 6S2P

The CATL 6S2P Replacement Board is designed for configuring or repairing battery modules in a 6S2P layout. It's compatible with CATL prismatic cells and allows for safe and reliable connection of two parallel sets of six cells in series.

Soldering pads are gold plated.

CATL-6S2P-REPLACEMENT
Sorry, This item is out of stock.
€40.00
Tax excluded

CATL Replacement Board 6S2P

The CATL 6S2P Replacement Board is designed for configuring or repairing battery modules in a 6S2P layout. It's compatible with CATL prismatic cells and allows for safe and reliable connection of two parallel sets of six cells in series.

Main Features:

  • Configuration: 6S2P (6 cells in series, 2 in parallel)
  • Material: Durable PCB designed for stable and secure connections
  • Use Cases: Battery repairs, DIY battery pack builds, or reconfigurations

Applications:

  • Energy storage systems
  • Custom battery projects using CATL cells
  • Rebuilding or maintaining 6S2P battery modules

This board is a practical solution for safely assembling or restoring CATL-based 6S2P battery packs.

This is not a BMS!

CATL-6S2P-REPLACEMENT

Do you want additional information regarding this product?


Ask your question

Question & Answer:

Q : Do you provide a pinouts diagram? Does the pins provide both cell balancing and temperature sensor wire connections

Answer this question

Q : Can you confirm the following please: 1. Is this board is a replacement for the Opel Mokka-e, / Peugeot E-208 battery module without the BMS components in place? 2. Do you also supply replacement plug in BMS connectors for the board? 3. Are the original BMS loom connectors compatible with this board? Thank you Lester

A: Hello, Below are my answers: 1. Yes, this replacement board is compatible. 2. Yes, is not in the picture but the board is supplied with the mating connector and pins. 3.The original connector is not compatible with the replacement board connector. Thanks!

person George @EVShop
