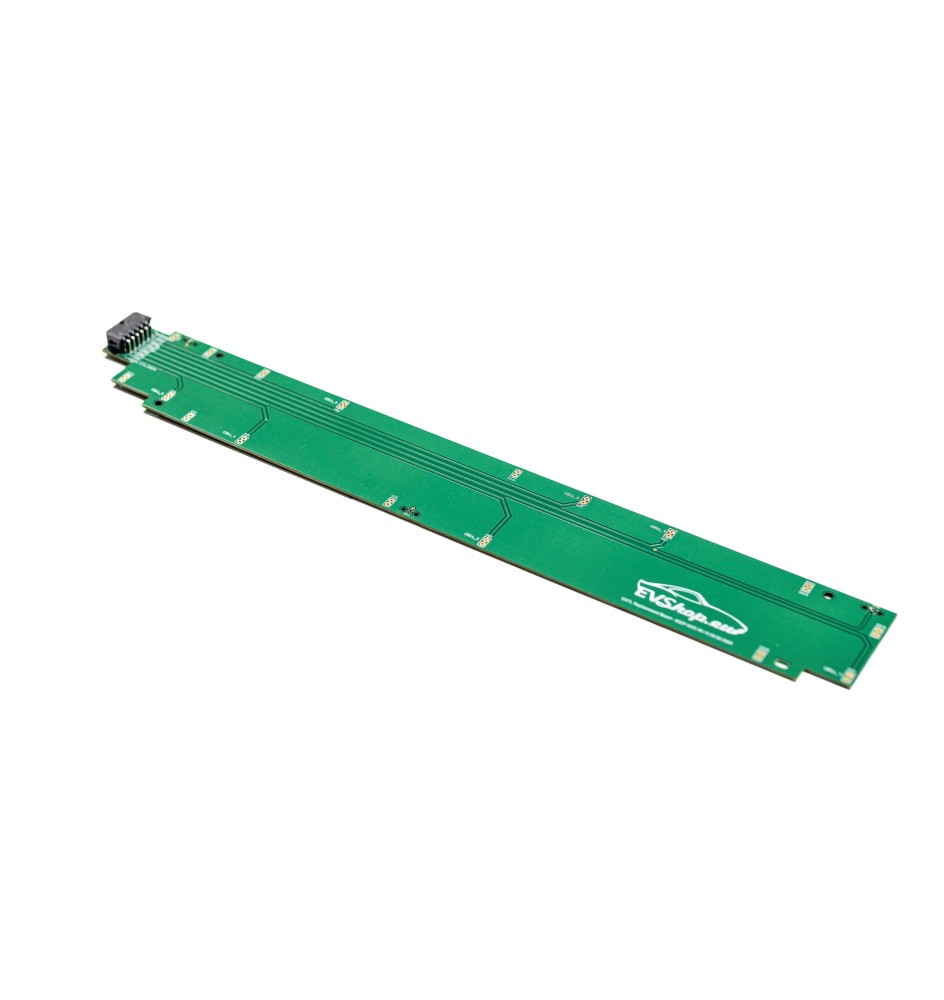

CATL Ersatzplatine 6S2P

Die CATL 6S2P-Ersatzplatine dient zur Konfiguration oder Reparatur von Batteriemodulen im 6S2P-Layout. Sie ist mit prismatischen CATL-Zellen kompatibel und ermöglicht die sichere und zuverlässige Verbindung von zwei parallelen Sätzen mit jeweils sechs Zellen in Reihe.

Lötpads sind vergoldet.

CATL-6S2P-REPLACEMENT
Leider ist dieser Artikel nicht vorrätig.
40,00 €
zzgl. MwSt.

CATL-Ersatzplatine 6S2P

Die CATL 6S2P-Ersatzplatine dient zur Konfiguration oder Reparatur von Batteriemodulen im 6S2P-Layout. Sie ist mit prismatischen CATL-Zellen kompatibel und ermöglicht die sichere und zuverlässige Verbindung von zwei parallelen Sätzen mit jeweils sechs Zellen in Reihe.

Haupteigenschaften:

  • Konfiguration: 6S2P (6 Zellen in Reihe, 2 parallel)
  • Material: Robuste Leiterplatte für stabile und sichere Verbindungen
  • Anwendungsfälle: Batteriereparaturen, Selbstbau von Batteriepacks oder Neukonfigurationen

Anwendungen:

  • Energiespeichersysteme
  • Kundenspezifische Batterieprojekte mit CATL-Zellen
  • Umbau oder Wartung von 6S2P-Batteriemodulen

Diese Platine ist eine praktische Lösung für die sichere Montage oder Wiederherstellung von CATL-basierten 6S2P-Akkupacks.

Dies ist kein BMS !

CATL-6S2P-REPLACEMENT

Have doubts regarding this product??


Post Your Question


Question & Answer:

Q : Do you provide a pinouts diagram? Does the pins provide both cell balancing and temperature sensor wire connections


Q : Can you confirm the following please: 1. Is this board is a replacement for the Opel Mokka-e, / Peugeot E-208 battery module without the BMS components in place? 2. Do you also supply replacement plug in BMS connectors for the board? 3. Are the original BMS loom connectors compatible with this board? Thank you Lester

A: Hello, Below are my answers: 1. Yes, this replacement board is compatible. 2. Yes, is not in the picture but the board is supplied with the mating connector and pins. 3.The original connector is not compatible with the replacement board connector. Thanks!

person George @EVShop
